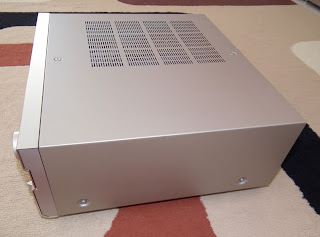

Yamaha RX-V800 (AV Receiver) 1

Specifications :

Minimum RMS Output Power per Channel MAIN, 1kHz, 0.06% THD, 8 ohms...110W + 110W
CENTER, 1kHz, 0.06% THD, 8 ohms...110W
REAR, 1kHz, 0.06% THD, 8 ohms...110W +110W
Dynamic Power per Channel MAIN, 8/6/4/2 ohms...135/170/205/245W
Dynamic Headroom 8 ohms...1.3dB
Damping Factor MAIN L/R, 20Hz-20kHz, 8 ohms...80 or more
Input Sensitivity/ Impedance PHONO MM...2.5mV/47k ohms
CD, etc...150mV/47k ohms
Maximum Input Signal Level PHONO MM, 1kHz, 0.05% THD, (Effect on)...100mV
CD, etc (Effect on)...2.2V
Output Level/ Impedance REC OUT...150mV/900 ohms
PRE OUT (MAIN, etc)...2.57V/1.2k ohms
SUBWOOFER (EFFECT OFF, MAIN SP:SMALL)
MONO...4.0V/1.2k ohms
Headphone Jack Rated Output/Impedance CD, etc, (40mV, 8 ohms)...150mV/100 ohms
Frequency Response (10Hz-100kHz) CD, etc, MAIN L/R...+0/-3.0dB
RIAA Equalization Deviation (20Hz-20kHz) PHONO MM...0 +/- 0.5dB
BASS Boost/Cut...+/-10dB (50Hz)
Turnover Frequency...350Hz
TREBLE Boost/Cut...+/-10dB (20kHz)
Turnover Frequency...3.5 kHz
Bass Extension +6dB (60Hz)
Filter Characteristics SUBWOOFER OUT: LPF...fc=90Hz, 18dB/oct
MAIN, CENTER, REAR SP SMALL: HPF...fc=90Hz, 12dB/oct
Total Harmonic Distortion (20Hz-20kHz) PHONO MM to REC OUT (1V)...0.02%
CD, etc, to MAIN SP OUT L/R (1V)...0.04%
Signal-to-Noise Ratio (IHF-A-Network) CD, etc, Input Shorted (Effect off)...96dB
Residual Noise (IHF-A-Network) MAIN, SP OUT...150uV
Channel Separation (Vol.-30dB, Effect off) PHONO MM, Input Shorted, 1kHz...60dB
CD, etc, Input 5.1k ohms Shorted, 1kHz...60dB
Muting - infinity
Video Signal Type NTSC
Composite Video Signal Level 1Vp-p/75 ohms
S Video Signal Level Y...1Vp-p/75 ohms
C...0.286Vp-p/75 ohms
Component Signal Level Y...1Vp-p/75 ohms
Cb/Cr...0.7V/75 ohms
Video Maximum Input Level 1.5Vp-p
Video Signal-to-Noise Ratio 50dB
Monitor Output Frequency Response Composite Video Signal...5Hz-10MHz, -3dB
S-Video Signal...5Hz-10MHz, -3dB
Component Signal...DC-30MHz, -3dB
Tuning Range 530 to 1,710kHz
50dB Quieting Sensitivity (IHF, 75ohms) Mono (1kHz, 100% Mod)...2.0uV (17.3dBf)
Stereo (1kHz, 100% Mod)...25uV (39.2dBf)
Selectivity (400kHz) 70dB
Signal-to-Noise Ratio 52dB
Harmonic Distortion Mono/Stereo (1kHz)...0.2./0.3%
Stereo Separation 1kHz...45dB
Frequency Response 20Hz-15kHz...+0.5/-2.0dB
Output Level AM 30% Mod. 1kHz...150mV
Antenna Input 75 ohms unbalanced
Usable Sensitivity 300uV/m
Antenna Loop Antenna
Dimensions Width = 17 1/8 in.
Height = 6 in.
Depth = 15 3/8 in.
Weight = 33 lbs.

- Kondisi Normal 100%
- Mulus
- Kelengkapan hanya Unit dan Remote

Status : SOLD
